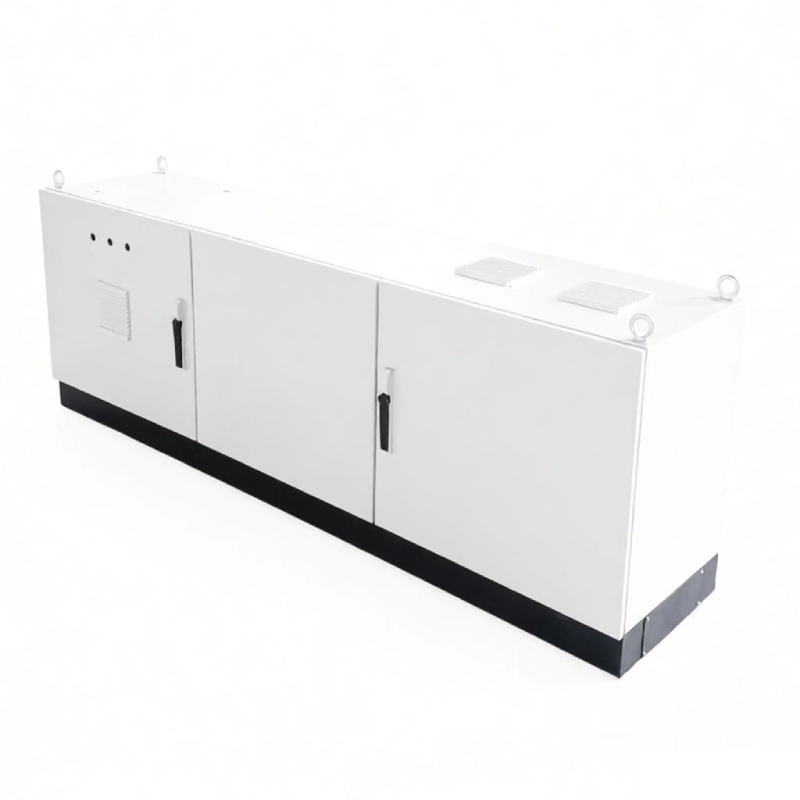

    AE Luxury Vertical Control 22
    AE Vertical Control Box
    AE Luxury Vertical Control 22

    Products

    AK/AE Luxury Vertical Control Box Series

    Features of product

    • PU foaming sealing strip ensures a protection grade of IP56 to box body
    • Widened box frame, bearing hinge and door plate square tube stiffener ensures high strength of the box body
    • The mounting plate and high-strength mounting rack ensures the reliability of the mounting parts (can be used for wiring outside the box)
    • Bottom inlet/outlet line device allows easy installation of inlet/outlet lines
    • Optional lifting ring system allows easy handling

    Inquire Now

    WhatsApp

    Share:

    • Detailed description

    Product Process Description

    MaterialCold Rolled Steel Sheet
    Surface TreatmentEtch primer for box body and door plate; powder coating for outside; RAL7032 or RAL7035
    texture optional; galvanized mounting plate
    Protection GradeIP56 (acc. to GB4205-1993)
    Standard ConfigurationDoor plate, box body, sealing strip, grounding set, mounting plate, door lock, lifting ring (option)
    Plate ThicknessBox body: 1.5mm
    Door plate: 2.0mm
    Mounting plate: standard 2.5mm

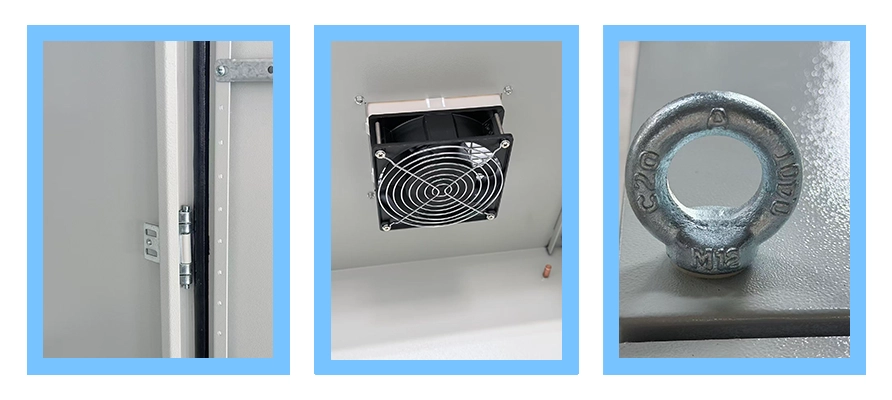

    Firm door plate square tube stiffenerReinforced folded box frame; flexible bottom inlet/outlet line modeZinc alloy 130o bearing hinge
    High strength mounting plate rack
    No.Order number (ES)Order number (ES)WidthHeightDepth
    1AK801230002AK8012300058001200300
    2AK101030002AK10103000510001000300
    3AK101230002AK10123000510001200300
    4AK601240002AK6012400056001200400
    5AK801240002AK8012400058001200400
    6AK121240002AK12124000512001200400
    7AE801230002AE8012300058001200300
    8AE101030002AE10103000510001000300
    9AE101230002AE10123000510001200300
    10AE601240002AE6012400056001200400
    11AE801240002AE8012400058001200400
    12AE121240002AE12124000512001200400
