Features of product
| Material | Cold Rolled Steel Sheet |
| Surface Treatment | Etch primer for box body and door plate; powder coating for outside; RAL7032 or RAL7035 texture optional; galvanized mounting plate |
| Protection Grade | IP56 (acc. to GB4205-1993) |
| Standard Configuration | Door plate, box body, sealing strip, grounding set, mounting plate, door lock, lifting ring (option) |
| Plate Thickness | Box body: 1.5mm Door plate: 2.0mm Mounting plate: standard 2.5mm |

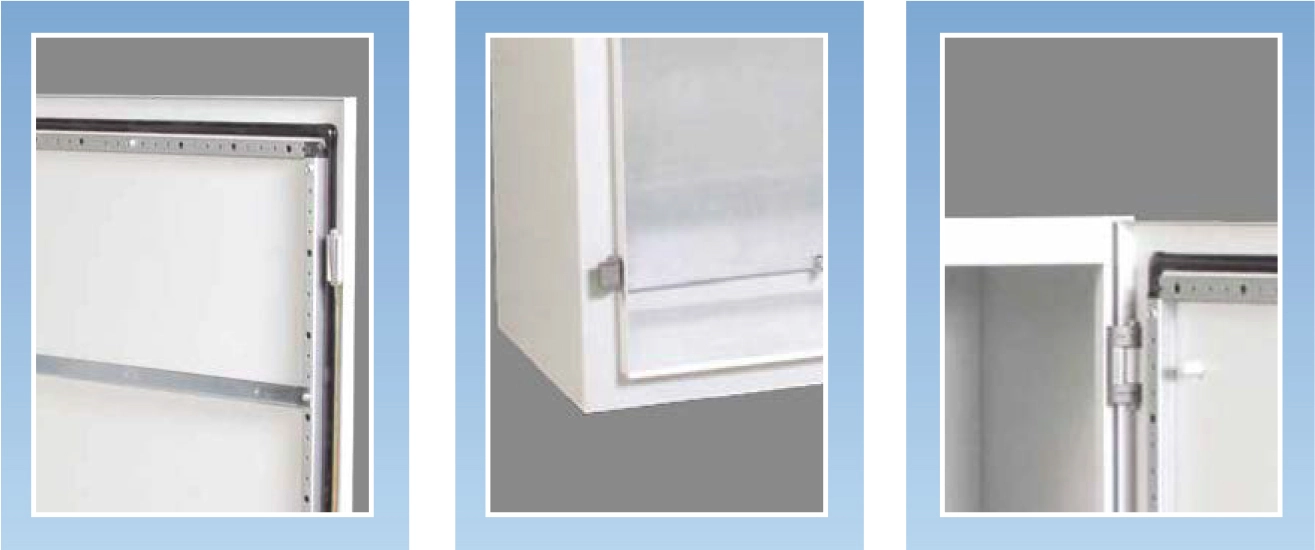

| Firm door plate square tube stiffener | Reinforced folded box frame; flexible bottom inlet/outlet line mode | Zinc alloy 130o bearing hinge High strength mounting plate rack |
| No. | Order number (ES) | Order number (ES) | Width | Height | Depth |
| 1 | AK801230002 | AK801230005 | 800 | 1200 | 300 |
| 2 | AK101030002 | AK101030005 | 1000 | 1000 | 300 |
| 3 | AK101230002 | AK101230005 | 1000 | 1200 | 300 |
| 4 | AK601240002 | AK601240005 | 600 | 1200 | 400 |
| 5 | AK801240002 | AK801240005 | 800 | 1200 | 400 |
| 6 | AK121240002 | AK121240005 | 1200 | 1200 | 400 |
| 7 | AE801230002 | AE801230005 | 800 | 1200 | 300 |
| 8 | AE101030002 | AE101030005 | 1000 | 1000 | 300 |
| 9 | AE101230002 | AE101230005 | 1000 | 1200 | 300 |
| 10 | AE601240002 | AE601240005 | 600 | 1200 | 400 |
| 11 | AE801240002 | AE801240005 | 800 | 1200 | 400 |
| 12 | AE121240002 | AE121240005 | 1200 | 1200 | 400 |

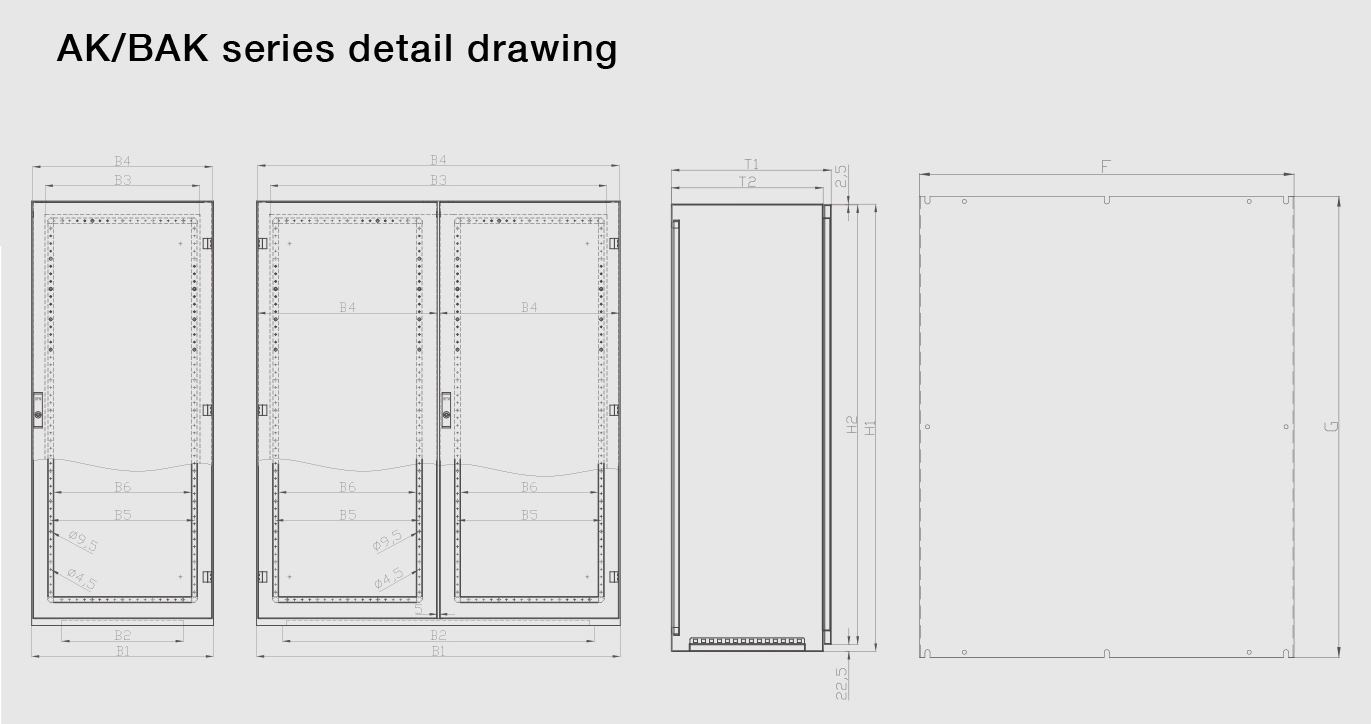

| B1: Total width B2: Wiring insert width of the bottom plate (cabinet width ≥1200, wiring insert plate in the bottom divides into left and right 2 parts ) B3: Net width of the cabinet framework B4: Door plate width B5: The center size of the square tube reinforcing rib installation in the back of door plate B6: The interior size of the square tube reinforcing rib in the back of door plate | H1: Cabinet height H2: Door plate height T1: Cabinet total depth T2: cabinet depth without door plate F: Mounting plate width G: Mounting plate height |
